Dmx Dip Switch - Dip Switch Calculator Moving Light Assistant 1 4 - Plan your address setting carefully.. Typing three numbers into the app is much faster than calculating all that binary numbers in your head. Related searches for dip switch dmx: For installations requiring dmx control, set the personalized dmx address using the address table (right) for address dip dip switch position settings. A small tool helping lighting people setup dipswitches quickly on lighting devices. If your units use block addressing, you need to work it out yourself.

Test modes 1 to 4 have adjustable speed from about 0.5 to about 2hz. Dip switch addressing for android to remote addressing app for freestyler dmx > 3.6.47. Its sturdy metal chassis makes this rugged pack ideal for both stationary and portable applications. Read the user manual of the products you will use! Intended for use with dmx controllable loads.

12v 24v Pwm Output Led Strip Dmx Decoder 12 Channel Dip Switch Addressing from www.leddimmercontroller.com

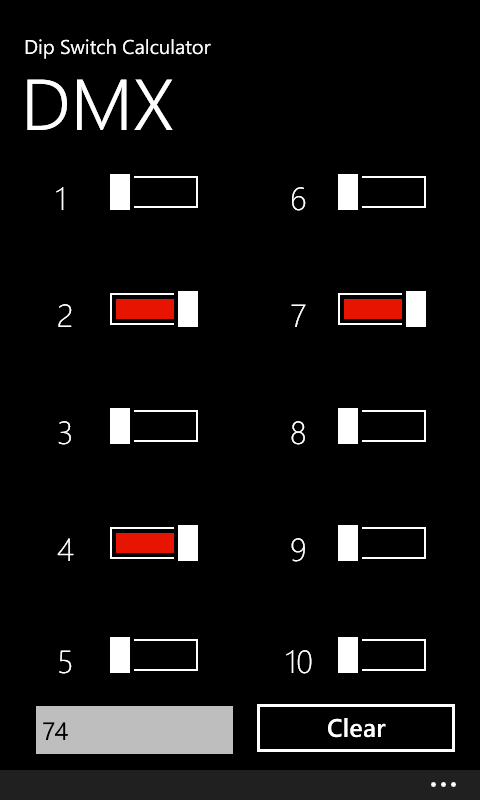

It has never hurt anyone to read a manual. Most dmx controllers are equipped with a dip switch, which is where you set your dmx address. Up to 15 modes and 31 steps speeds for your options. Dmx dip switch calculator this is an easy to use dmx dip switch calculator to help you quickly find out what setting you need to set your dip switches to, to work with your dmx controller requirements. The dip switch board can be found inside the housing accessible below the ceiling. With this application now you can calculate correct channel numbers when you're on stage. Simply enter the dmx address of the given fixture and dipswitch will give you the correct dip switch settings. Related searches for dip switch dmx:

Some units will not use the 10th switch.

This allows installation in any location because its test switch does not need to be accessible. Up to 15 modes and 31 steps speeds for your options. Some units do not have switch 10 or may use it for another function, or may have switch 9 as part of a separate switch bank. Plan your address setting carefully. Also quickly check the dmx address by setting the dips in the application to reflect the current positions on the device. Chauvet dj dip switch calculator for dmx addressing. The dip switches are set according to binary calculation meaning that every dip switch can feedback only the values 0 and 1. Related searches for dip switch dmx: It has never hurt anyone to read a manual. It is a data cable. To learn more about dmx lighting go to our blog: A dmx personality is what a channel or group of channels control the fixture's parameters. Most dmx controllers are equipped with a dip switch, which is where you set your dmx address.

Note that some fixtures use different formats for dip switch settings. The term may refer to each individual switch, or to the unit as a whole. Does not include ul1008 transfer switch. Ch# dip switch on ch# dip switch on ch# dip switch on ch# dip switch on 1 2= 2 3= 3 5= The dip switch boa rd can be found inside the housing accessible below the ceiling.

12v 24v Dc Rj45 Dip Switch Constant Voltage Euchips Led Dmx Decoder Px24500 Led Lights Led Controllers Led Bulbs Www Vozopca Com from www.vozopca.com

Ch# dip switch on ch# dip switch on ch# dip switch on ch# dip switch on 1 2= 2 3= 3 5= Choosing the right dip switch number If your units use block addressing, you need to work it out yourself. Does not include ul1008 transfer switch. The calculation is comparably simple: It is a data cable. Up to 15 modes and 31 steps speeds for your options. This application was designed specifically for those planning to use it during the setup of dmx lighting fixtures.

It is a data cable.

The control is done by ten switches. Some units do not have switch 10 or may use it for another function, or may have switch 9 as part of a separate switch bank. To learn more about dmx lighting go to our blog: Every dip switch has the value 2 n where n is the number of the dip switch. Avoid running dmx cables parallel to power cables and dimmer load cables. Dip switch addressing for android to remote addressing app for freestyler dmx > 3.6.47. It boasts the latest convenience features: Dmx will have a twisted pair and a metal woven shielding around them. The calculation is comparably simple: If pin1 = high then result1 is ex 1. Dmx dip saves you valuable time, you don't have to calculate what dip switches you have to set to put your fixture on an address. Some units will not use the 10th switch. Dip switches are tiny switches on the dmx device that are used for setting the dmx address of the fixture, as you can see in the above picture the first dip switch is down and in the 'on' position this means the dmx address is currently 1 if i was to now flick down the dipswitch labeled 256 the dmx address would be 1 + 256 = 257 if i took flicked the 1 in to the 'off' postion then it would now be 256 if i flicked the 128 labeled dip switch the dmx adress would now be 128 + 256 = 384

You can check if the cable you are buying as dmx really is dmx by removing an end connector and looking at the wiring. It is a data cable. If pin1 = high then result1 is ex 1. Choosing the right dip switch number Up to 15 modes and 31 steps speeds for your options.

Hot Dc12v 24v Led Dmx512 Decoder Dip Switch Led Dmx Decoder Dmx 512 Rgb Led Controller 6a 3ch 384w Warranty View Dmx512 Decoder Hoion Product Details From Shenzhen Hoion Lighting Co Limited On Alibaba Com from sc04.alicdn.com

The dip switch board can be found inside the housing accessible below the ceiling. Note that some fixtures use different formats for dip switch settings. This app is free and contains no ads. Its sturdy metal chassis makes this rugged pack ideal for both stationary and portable applications. Some units will not use the 10th switch. The term may refer to each individual switch, or to the unit as a whole. Dip switch addressing for android to remote addressing app for freestyler dmx > 3.6.47. Some units do not have switch 10 or may use it for another function, or may have switch 9 as part of a separate switch bank.

The dip switches are set according to binary calculation meaning that every dip switch can feedback only the values 0 and 1.

Note that some fixtures use different formats for dip switch settings. Intended for use with dmx controllable loads. This calculator will work for units which use normal dmx addressing. You could connect with dmx digital console to achieve rgb dimming functions. With this application now you can calculate correct channel numbers when you're on stage. Simply enter the dmx address of the given fixture and dipswitch will give you the correct dip switch settings. The dip switch board can be found inside the housing accessible below the ceiling. First dip switch is 0 (computers start counting from 0, not from 1), so when it's switched on it says 2 0 = 1. To learn more about dmx lighting go to our blog: Some units do not have switch 10 or may use it for another function, or may have switch 9 as part of a separate switch bank. Most dmx controllers are equipped with a dip switch, which is where you set your dmx address. Ch# dip switch on ch# dip switch on ch# dip switch on ch# dip switch on 1 2= 2 3= 3 5= The control is done by ten switches.

Source: seismicaudiospeakers.files.wordpress.com

October 6, 2016 at 8:13 pm. Dmx will have a twisted pair and a metal woven shielding around them. Intended for use with dmx controllable loads. Typing three numbers into the app is much faster than calculating all that binary numbers in your head. Most dmx controllers are equipped with a dip switch, which is where you set your dmx address.

Source: www.lightwaveuk.com

This application was designed specifically for those planning to use it during the setup of dmx lighting fixtures. For installations requiring dmx control, set the personalized dmx address using the address table (right) for address dip dip switch position settings. Simply enter the dmx address of the given fixture and dipswitch will give you the correct dip switch settings. Wall dimmer switches smart switch sensor switch industrial poe switch nintendo switch console 32gb switches socket power switch switch with wifi nintendo switch case reed float switch rocker switch wifi switch more. Dmx dip switch calculator this is an easy to use dmx dip switch calculator to help you quickly find out what setting you need to set your dip switches to, to work with your dmx controller requirements.

Source: cdn.goodao.net

Dip switch addressing for android to remote addressing app for freestyler dmx > 3.6.47. Dmx dip saves you valuable time, you don't have to calculate what dip switches you have to set to put your fixture on an address. Dip switch calculator dmx is a digital control protocol used for lighting control. The calculation is comparably simple: Most dmx controllers are equipped with a dip switch, which is where you set your dmx address.

Source: cdn.goodao.net

The dip switch boa rd can be found inside the housing accessible below the ceiling. Read the user manual of the products you will use! You can check if the cable you are buying as dmx really is dmx by removing an end connector and looking at the wiring. The term may refer to each individual switch, or to the unit as a whole. I know it may sound complex, but we're going to make it as simple, yet informative, as possible!

Source: www.freestylersupport.com

Dip switches allow any dmx base address to be set (unit uses this and the two subsequent addresses), also allow selection of 5 test modes suitable for standalone use (e.g to chase light effects. Dip switches are tiny switches on the dmx device that are used for setting the dmx address of the fixture, as you can see in the above picture the first dip switch is down and in the 'on' position this means the dmx address is currently 1 if i was to now flick down the dipswitch labeled 256 the dmx address would be 1 + 256 = 257 if i took flicked the 1 in to the 'off' postion then it would now be 256 if i flicked the 128 labeled dip switch the dmx adress would now be 128 + 256 = 384 Dmx address can be set through dip switch. The dip switches are set according to binary calculation meaning that every dip switch can feedback only the values 0 and 1. If your units use block addressing, you need to work it out yourself.

Source: store-images.s-microsoft.com

The term may refer to each individual switch, or to the unit as a whole. You can check if the cable you are buying as dmx really is dmx by removing an end connector and looking at the wiring. This app is free and contains no ads. Ch# dip switch on ch# dip switch on ch# dip switch on ch# dip switch on 1 2= 2 3= 3 5= Typing three numbers into the app is much faster than calculating all that binary numbers in your head.

Source: store-images.s-microsoft.com

Typing three numbers into the app is much faster than calculating all that binary numbers in your head. Dmx dip saves you valuable time, you don't have to calculate what dip switches you have to set to put your fixture on an address. If your units use block addressing, you need to work it out yourself. Chauvet dj dip switch calculator for dmx addressing. For installations requiring dmx control, set the personalized dmx address using the address table (below) for address dip switch position settings.

Source: miro.medium.com

Also quickly check the dmx address by setting the dips in the application to reflect the current positions on the device. It is a data cable. Does not include ul1008 transfer switch. Convert from decimal to binary and back again quickly and easily. Our friends at chauvet have created a dip switch calculator which will show you which positions the dip switches need to be in for each starting address.

Source: image.winudf.com

First dip switch is 0 (computers start counting from 0, not from 1), so when it's switched on it says 2 0 = 1. A dmx personality is what a channel or group of channels control the fixture's parameters. Can't find anywhere how it should be done so i assumed that if a feed all the switches +5v and give them separate inputs where i write something like: The dip switch board can be found inside the housing accessible below the ceiling. Dip switch calculator dmx is a digital control protocol used for lighting control.
